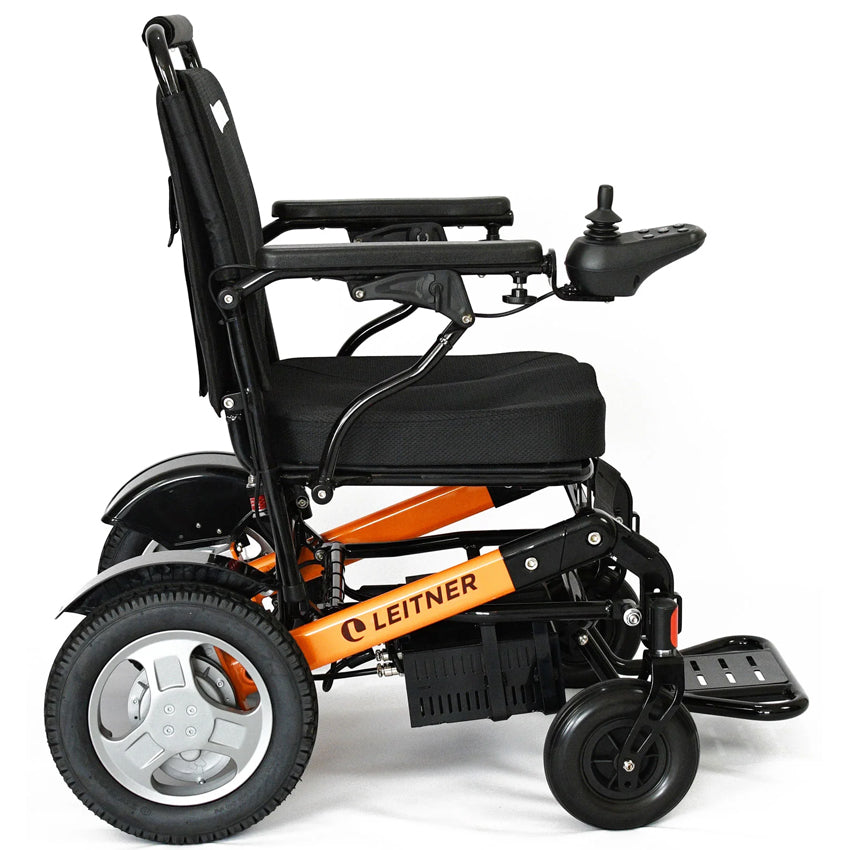

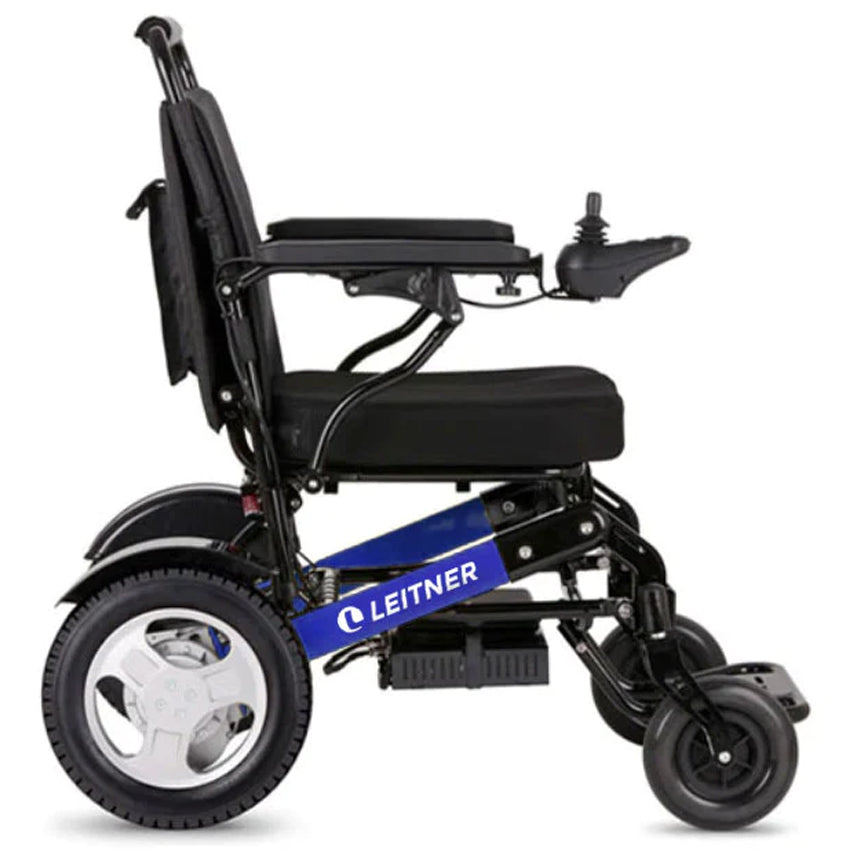

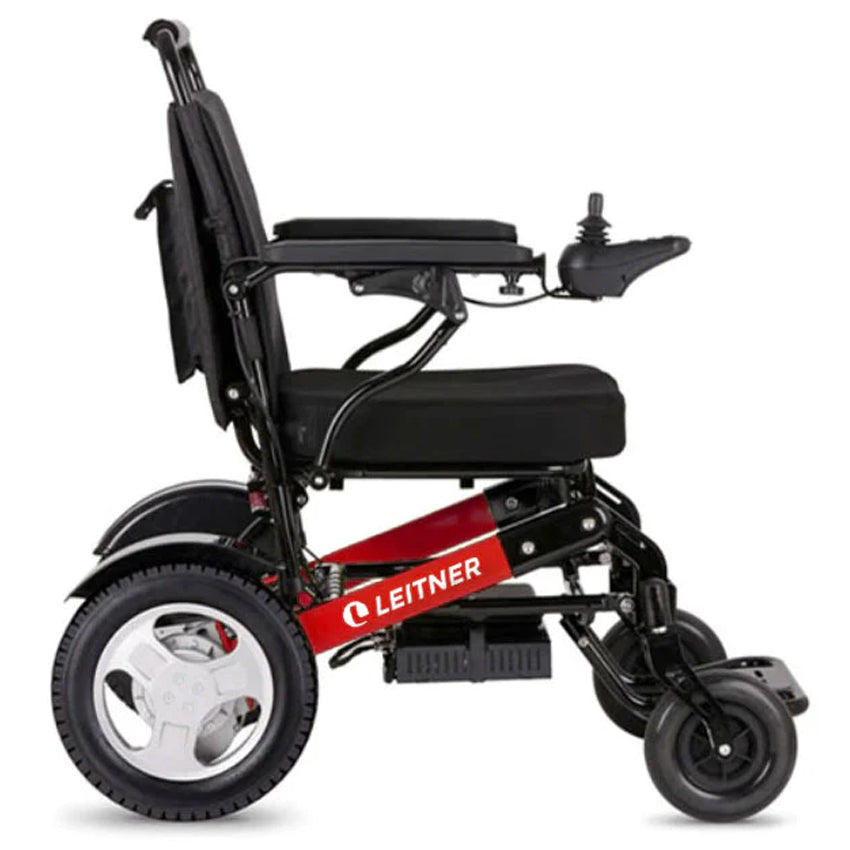

Leitner BILLI - Light-Weight Folding Electric Wheelchair

Leitner BILLI - Light-Weight Folding Electric Wheelchair

$2,745.00

SKU:
Availability: In stock ( item(s) )
Product type: Electric Wheelchair

Hurry up! Only item(s) left in Stock!

Color:

Description

The Light-Weight Folding Electric Wheelchair BILLI is the successor to the Leitner FRANKIE Electric Wheelchair. With larger front wheels, higher ground clearance, a more spacious sitting area, a bag on the rear and drawer-style batteries underneath the seat it is a stylish and reliable travel companion weighing just 26kg without batteries. Fold it in seconds for easy transport and storage. Several optional accessories are available including a bag for extra protection and convenience during transport.

Electric Wheelchair Features

Packed with features this Light-weight Electric Folding Wheelchair will help you reach your destination in comfort and style.

folded in 7 seconds to fit into most cars (91cm high x 65cm wide x 36 cm deep)
to make it even smaller, remove the joystick (77x65x36 cm)
dual suspension at rear under back-rest for superior comfort also in bumpy situations
weighs ~26kg without batteries, ~28kg with batteries
Batteries can be removed in seconds
suitable for most airlines (please confirm with airline and airports before booking flight)
travels up to 20km
maximum weight capacity: 150kg
five different speed settings: from low speed for great agility in tight situations up to walking speed (about 5km/h)
joystick control, installed on the right - can be installed on the left by user or at the backrest with the adapter (sold separately)
small turning radius of about 85cm
both arm rests can be flipped up
solid PU wheels, 12.5 inch diameter (rear), 8 inch diameter (front), 2.5 inch wide. No more punctures!
easy to assemble: 5 minutes, no tools required: insert joystick, attach backrest , done!
includes horn, battery charger, mudguards for rear wheels and a storage bag behind the back-rest
for use on even, paved surfaces

This Electric Wheelchair has an extra-spacious ergonomically designed sitting area

Designed for your comfort, there is 50cm of space between the armrests with an ergonomically shaped seat cushion. If this was an airplane seat you'd be in business class :)

Easy To Charge

Charge the batteries at any standard power socket with the included charger. No need to wait until the battery is empty. Charge it at any time. It takes about 6 hours for a full charge and less for a partial charge. The batteries can be charged while inserted on the chair.

Electric Wheelchair Dimensions

Electric Wheelchair Dimensions Folded

Motors	Two powerful rear drive brushless motors, 24V 250W, combined 500W. Maximum 12 degree climbing ability
Frame	Light-weight Aluminum-alloy
Battery	Two 6ah 24V Lithium batteries (total capacity 12ah). A single battery has 144Wh, both batteries combined have 288Wh which makes the batteries compatible for transport with most airlines. Certified safe for air-transport according to UN 38.3. Please confirm with airline and airports first, as some airlines may have different guidelines. The electric wheelchair can be operated with both batteries or just with one battery. Downloads: - A letter confirming these specifications - Battery MSDS - Battery UN38.3 certificate
Brakes	Intelligent electromagnetic brakes: as soon as the control joystick is not operated, the brakes will stop the electric wheelchair -the brakes can be released using two safety releases on the rear which can be operated from behind by foot, or by hand if the wheelchair occupant reaches back -after the brakes have been released, the wheelchair can be pushed from behind or it can be rolled on the rear wheels when folded. If the wheelchair is occupied, it is recommended to use power assistance (joystick control). Pushing the electric wheelchair from behind is possible, however it is a bit harder as compared to pushing a non-motorized wheelchair.
Joystick Control	The joystick is installed on the right armrest. It can be installed on the left armrest by the user. Plus and minus buttons to adjust top speed. 5 speed levels from very slow to walking speed. ON/OFF button, horn button and battery charge display. With the Joystick Backrest Attachment the chair can be controlled from the back by a carer.
Turning Radius	85cm
Dimensions	Folded: 77x65x36cm without joystick. 91cm high x 65cm wide x 36 with joystick. Fully assembled: 94cm long, 65cm wide, 97cm high (at top of backrest) Distance from top of seat cushion to floor 50cm, without cushion 43cm Height difference from top of seat cushion to footrest about 40cm Height of backrest approx 48cm from top of seat cushion to top of backrest Padded armrests 33cm long, 4.5cm wide
Folding procedure	Release safety clamp at back of chair, fold chair. Takes about 7 seconds.
Armrests	Padded, flip up. Safety release on outside of armrest.
Travelling Distance on one charge	Up to 20km depending on hills and weight of occupant
Rear Wheels	12.5inch x 2.25inch rear wheels with 4mm deep profile, solid PU
Front Wheels	8inch ×2inch front wheels, 1mm deep profile, solid PU
Storage	Integrated storage bag at rear of backrest: 30cm wide, 5cm deep, 26cm high. Bag closes with two quick-click-buttons,
Footrest	Flip-up footrest. clearance from ground 8.5cm, slightly angled upwards. Footrest dimensions: 18cm deep, 18cm wide (back), 33cm wide (front), trapezoid shape
Seat Cushion and Backrest	ErgonomicSeat cushion 44cm deep, 44cm wide, 6-10cm high. Distance between insides of armrests 50cm. Seat cushion removable (quick on-off velcro). Cover of seat cushion and back-rest are removable and washable.
Maximum Speed	Walking speed about 5km/h
Mudguards	Two rear PVC mudguards
Weight	26kg without batteries, 28kg with batteries. Battery removal quick and easy.
Carry capacity	Maximum payload of 150 kg. This includes occupant and luggage.
Charger	2A 24V charger - connect to standard wall power socket. 6 hours charge time if batteries completely empty. Quicker charge time if batteries are not completely empty. Batteries can be charged at any time - they don't have to be completely empty. Connect the charger to the joystick unit to charge the batteries - no need to remove the batteries from the chair for charging.
Warranty	Spare parts can be supplied. 1 year warranty for motor, batteries and controller for manufacturer's fault. 2 year warranty for frame for manufacturer's fault. Please read full warranty and terms at leitner.com.au
Assembly	Simple assembly needed (attach joystick and attach backrest with velcro).
